Deep Scanning Metal Locator Rebar Detector Tester Scanner Locator Test Machine

Basic Info.

Model NO.	MSJY-8/8S
Material	Thick Steel
Condition	New
Result	Reading, Print and Transfer to PC
Standard	Ge/T
Display	Digital Display
Product Name	Metal Locator Rebar Detector Test NDT Tester
Transport Package	9mm and 15mm Plywood Package
Specification	thick steel
Trademark	civittest
Origin	Zhejiang-China
HS Code	9031809090
Production Capacity	200pieces/1 Month

Product Description

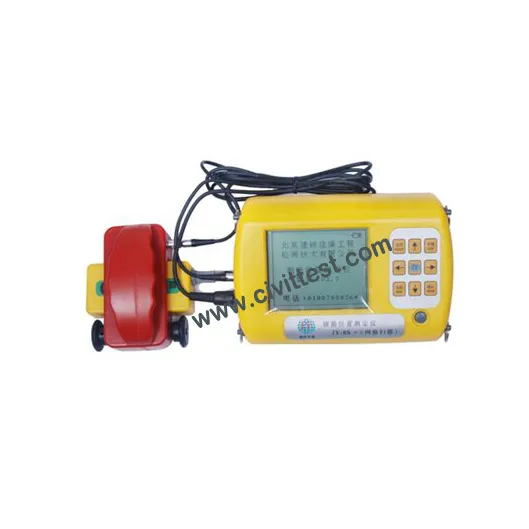

Deep Scanning Metal Locator Rebar Detector Tester Scanner Locator Test Machine

I. Use

1. Determine steel bars position in concrete structure and their bar drawing;
2. Estimate steel bars diameter and thickness of protection layer;
3. Measure thickness of protection layer under condition of known diameter;
4. Measure thickness of protection layer under a certain surface, with grid indication;
5. Measure thickness of protection layer under a certain line, indicating steel bars at section;
6. The probe is with self-correcting function;
7. Data saving and reading;
8. Data transfer.
9. Deep Scanning Metal Locator Rebar Detector

II. Parameter:

1. Steel bar diameter shall in the range of 6mm-50mm, and thickness of protection layer :
Table1.1 thickness range mm
mm

Steel bar diameter	First nominal range		Second nominal range
	Lower limit	Upper limit	Lower limit	Upper limit
6	6	70	7	90
8	7	70	10	100
10	7	80	11	126
12	7	80	14	126
14	8	80	15	126
16	8	80	16	126
18	8	80	16	126
20	8	86	18	160
22	9	86	18	160
25	9	86	19	160
28	9	86	21	160
32	9	90	21	180

2. Max allowed indication error for thickness of protection layer
Table 1.2 Max allowed indication error mm

Max allowed error	Nominal range for protection layer thickness
	First nominal range	Second nominal range
±1	6~59	7~79
±2	60~69	80~119
±4	70~90	120~180

3. Nominal diameter rannge: 6mm-32mm
4. Max. allowed error for steel bar diameter: error±1
Table 1.3 Indication error for steel bar diameter mm

diameter	6	8	10	12	14	16	18	20	22	25	28	32
Max. error	+2 0	±2	±2	±2	±2	±2	±2	±2	+3 -2	±3	+4 -3	0 -4

5. Data saving capacity: 131,000 testing data
6. Working temperature: -10ºC~+40ºC, humidity: <90%RH
No strong alternating electromagnetic field
7. Battery: 6 pcs of #5 alkaline batteries, supply duration is more than 35 hours
8. Main frame dimension: 220x150x90mm, weight: 772g
Small vehicle dimension: 130x95x68mm, weight: 160g
