Ultrasonic Flow Meter Precision Ultrasonic Open Channel Flow Meter

• Overview
• Product Description
• Packaging & Shipping
• Company Profile

Overview

Basic Info.

Model NO.	Ultrasonic Flow Meter
Main Application	Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas
Size	Clamp-on Type;Rack Type.
Sensor	Non-Contact
Application	Environmental Protection
Type	Ultrasonic Flow Meter
Measuring Media	Liquid
Measuring Principle	Optics
Certification	JIS, DIN, ANS, GB, CE, RoHS, ISO
Modle	Wall-Mount Ultrasonic Flow Meter
Diameter	Dn15-Dn6000
Output	4~20mA, Relay, RS485
Accuracy.	0.25%
Transport Package	Wooden Case or Carton
Specification	CE, ROHS, SGS, GMP
Trademark	Tianjin U-ideal Instrument
Origin	Tianjin, China
HS Code	90261000
Production Capacity	50000PCS/Year

Packaging & Delivery

Package Size30.00cm * 30.00cm * 25.00cm Package Gross Weight2.000kg

Product Description

Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transceiving technologies.

Portable ultrasonic flow meter
Handheld ultrasonic flow meter
Separate fixed ultrasonic flow meter

1. ultrasonic flow meter 2. DN15-DN6000 3. wide use at multiple materials of pipe 5. 10 yrs working experience foreign trade

1:operating power:isolation 8-36VDC

2:current: 50mA(under the condition of connection without keyboard display and alarm of buzzer)

3: signal output: one channel standard isolation RS485 output

One channel isolation 4-20mA or 0-20mA passive output.

Two channel OCT output(programmed between the pulse width(6-1000ms),default before out of factory (200ms))

4: signal input: two channel three wire system PT100 platinum resistor input loop,to make calorimeter has the function of displaying heat quantity.

Three channel 4-20mA input optional,accuracy:0.1%,has the ability to input the signals of pressure, liquid level, temperature and so on.

5:display:2*10backlit LCD,displaying instant flow rate,velocity,positive,negative,net totaliser flow rate.

6:operating: 4 keypad tactile keyboard operating

7:other functions: automatic memory the positive,negative,net totaliser or flow rate and thermal energy of the last 512 days,128 months,10years

Automatic memory the time of power turning on and off and flow rate of the last 30 times, realize to compensate by hand or automatically,read the datas through Modbus communication protocol.

8:protection level:IP57

9:transducer:clamp-on style,insertion style,flanged pipe style.

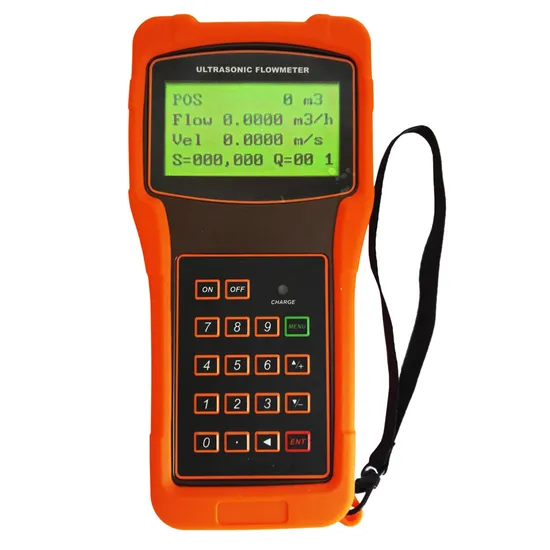

Hand-held type ultrasonic flowmeter

Product Description

Ultrasonic flow meter module TUF-2000M
Apply to form a complete set of system integration, water resources, energy saving, water supply and drainage, heating network monitoring projects such as flow rate, heat metering.
Features:
High precision: measurement precision is better than +/-1% Wide measuring range: to choose different types of sensors, can realize caliber DN15 ~ DN6000mm pipe flow measurement Powerful function:1 way 4-20 mA output can be used as heat (thermal)flow transmitter or volume flow transmitter; 2 way OCT output can be used as heat flow switch and volume flow switch ;3 way 4-20 mA input can be used as a data collector; 2 road 3 wire PT - 100 resistance signal input can be used as thermal meter. Long distance transmission distance, Quick networking: RS485 bus communication, using common cable, network is very convenient and quick

Features	Description
High Accuracy measuring	Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Wide measuring range	Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese & English menu	Different version UFM can support Chinese or English display, easy to operate.
High Reliability	Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.
Strong Anti-interference	Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function	Automatically record the following data: 1. The totalizer data of the last 512 days/128 months/10 years 2. The time and corresponding flow meter of the last 64 times of power on and off events 3. The working status of the last 32 days

Optional Transducer		Model	Measuring Range	Liquid Temperature	Accuracy
Clamp-on Transducer	TS-1(Small Size)	TUF-2000SNB1	DN15-100mm	-30°C~90°C	±1%
	TM-1(Medium Size)	TUF-2000SNB2	DN50-1000mm
	TL-1(Large Size)	TUF-2000SNB3	DN300-6000mm
High-temperature Clamp-on Transducer	THS-1(Small Size)	TUF-2000SNB4	DN15-100mm	-30°C~160°C
	THM-1(Medium Size)	TUF-2000SNB5	DN300-1000mm
Insertion Transducer	TC-1(Standard)	TUF-2000SNC1	DN80-6000mm	-40°C~160°C
	TLC-2(Lengthen)	TUF-2000SNC2
Prover section	Prover section	TUF-2000SNG	DN15-1000mm	-40°C~160°C	±0.5%
Power Supply	DC8-36V or AC85-264V
Input	3 channel 4-20mA analog input
Output	Isolation RS-485 output, 2 channel isolation OCT output: 1 channel isolation 4-20mA output (two-wire system)
Communication Protocols	Compatible with METER-BUS, MODBUS, Fuji extended protocol and general water meter protocol.
